Console Module

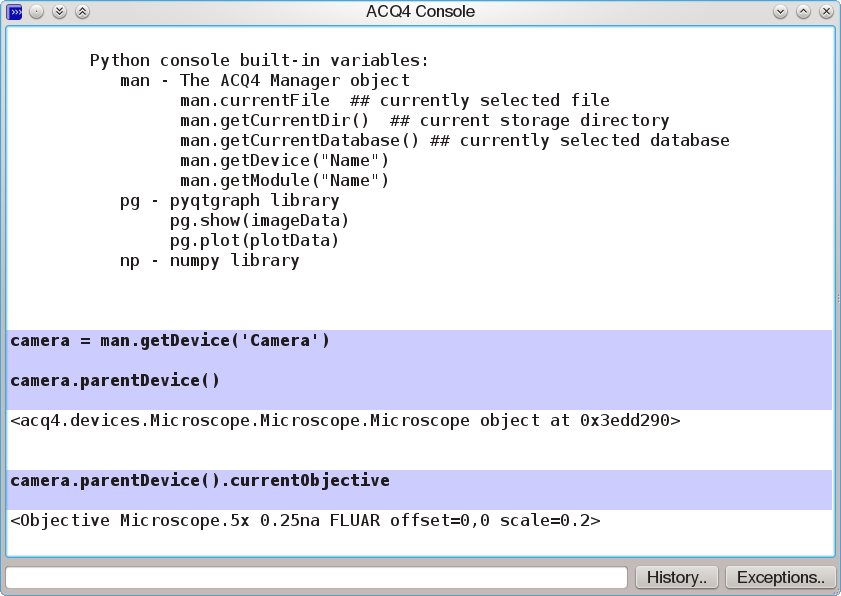

The Console module provides an interactive Python prompt for development, introspection, and debugging.

../../_images/console.png

The default namespace for the Console module has three useful objects imported:

  • np: the NumPy library
  • pg: the PyQtGraph library
  • man: the ACQ4 central Manager

Example uses

Direct interaction with devices:

clamp = man.getDevice('Clamp1')
clamp.setMode('vc')
clamp.setParam('BridgeBalResist',  15e6)

Quick data manipulation:

data = man.getCurrentDir()['Clamp1.ma'].read()
pri = data['Channel': 'primary'].asarray()
pg.plot(np.fft(pri))
